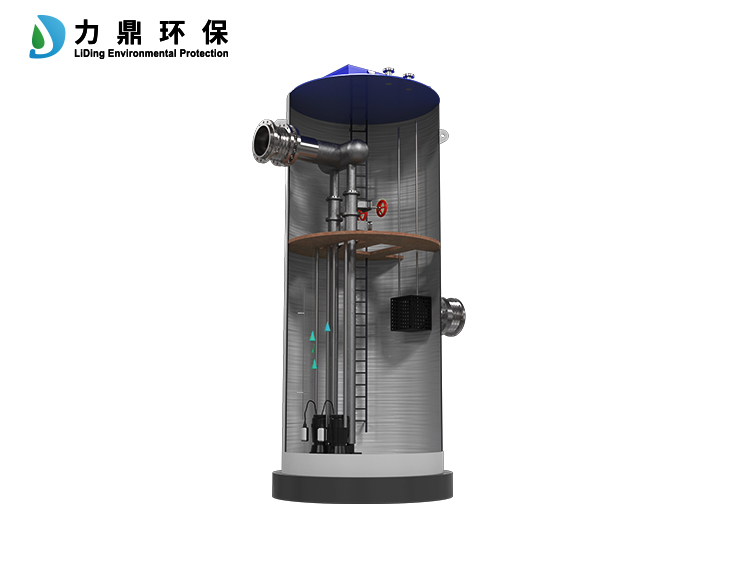

Integrated prefabricated pumping stations play an important role in wastewater treatment

Integrated pumping stations are very widely used in practice, for example, in the urban drainage system, integrated pumping stations are used to collect and elevate sewage to ensure that it can be successfully transported to the sewage treatment plant. In the agricultural area, integrated pumping station can provide irrigation water for farmland or timely discharge of water to improve the stability of agricultural production. The pumping station can provide stable production water for factories, and at the same time collect and treat industrial wastewater to ensure that it meets the discharge standards. In coastal areas, integrated pumping stations can efficiently transfer seawater to desalination units to provide fresh water resources for local residents.
Integrated pumping station is a kind of integrated equipment that integrates pumps, motors, control systems and pipelines and other components, and its core function principle can be summarised as follows:
1. Automatic pumping and water level control: through the set level sensor, the integrated pumping station is able to sense the water level of the water tank or pipeline. When the water level reaches the preset value, the pump starts automatically and pumps out the water; when the water level drops to a certain level, the pump stops running automatically, thus realising automatic pumping and water level control.
2. Separation of impurities and particles: at the inlet of the pumping station, there is usually a certain aperture of the grille, which is used to intercept large particles of impurities to prevent them from entering the pump and causing blockage.
3. Flow and pressure control: by adjusting the speed of the pump or the number of operating units, the integrated pumping station can achieve continuous adjustment of the flow rate to meet the demand for water pressure in different pipelines and outlets.
4. Automatic protection and fault diagnosis: the pumping station is equipped with a variety of internal sensors for monitoring current, voltage, temperature, pressure and other parameters. When there is an abnormality, the system will automatically shut down and issue an alarm, and at the same time send the fault information to the remote monitoring centre.
Integrated pumping stations play an important role in wastewater treatment equipment, and their role mainly includes collecting, lifting and transporting wastewater. By being equipped with appropriate sewage treatment equipment, integrated pumping stations are able to carry out preliminary treatment of sewage and reduce the burden of subsequent treatment processes.
The design and operation of an integrated pumping station requires consideration of many factors, such as flow rate, head, power consumption, reliability and so on. According to the actual demand, choose the appropriate integrated pumping station models and specifications to ensure the normal operation of sewage treatment equipment and meet the discharge standards.

The integrated pumping station equipment produced and developed by Liding Environmental Protection has a small footprint, high degree of integration, easy installation, and has very good project value.
