MBBR Wastewater Treatment Plant
Equipment Features
1. Low operating costs: Low operating cost per ton of water and long service life of FRP fiberglass material.
2. Automatic operation: Adopting automatic control, fully automatic unmanned operation 24 hours a day. An independently developed remote monitoring system that monitors data in real-time.
3. High degree of integration and flexible selection: :?
· Integrated and integrated design, flexible selection, short construction period.
· There is no need to mobilize large-scale human and material resources on site, and the equipment can operate stably after construction.
4. Advanced technology and good processing effect:?
· The equipment uses fillers with a larger specific surface area, which increases the volumetric load.
· Reduce land area, have strong operational stability, and ensure stable effluent meets standards.
Equipment Parameters
|
Processing capacity(m3/d) |
5 |
10 |
15 |
20 |
30 |
40 |
50 |
60 |
80 |
100 |
|
Size(m) |
Φ2*2.7 |
Φ2*3.8 |
Φ2.2*4.3 |
Φ2.2*5.3 |
Φ2.2*8 |
Φ2.2*10 |
Φ2.2*11.5 |
Φ2.2*8*2 |
Φ2.2*10*2 |
Φ2.2*11.5*2 |
|
Weight(t) |
1.8 |
2.5 |
2.8 |
3.0 |
3.5 |
4.0 |
4.5 |
7.0 |
8.0 |
9.0 |
|
Installed power(kW) |
0.75 |
0.87 |
0.87 |
1 |
1.22 |
1.22 |
1.47 |
2.44 |
2.44 |
2.94 |
|
Operating power（Kw*h/m3） |
1.16 |
0.89 |
0.60 |
0.60 |
0.60 |
0.48 |
0.49 |
0.60 |
0.48 |
0.49 |
|
Effluent quality |
COD≤100,BOD5≤20,SS≤20,NH3-N≤8,TP≤1 |
|||||||||
Note: The above data are for reference only, parameters and selection are subject to confirmation by both parties, combinations can be used, other non-standard tonnage can be customized.
Application Scenarios

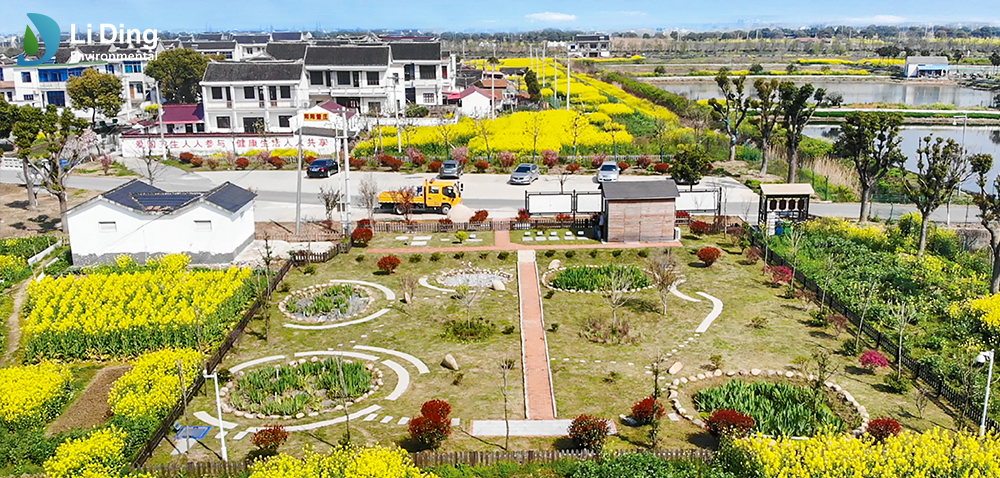

Suitable for decentralized sewage treatment projects in new rural areas, scenic spots, service areas, rivers, hotels, hospitals, etc.
