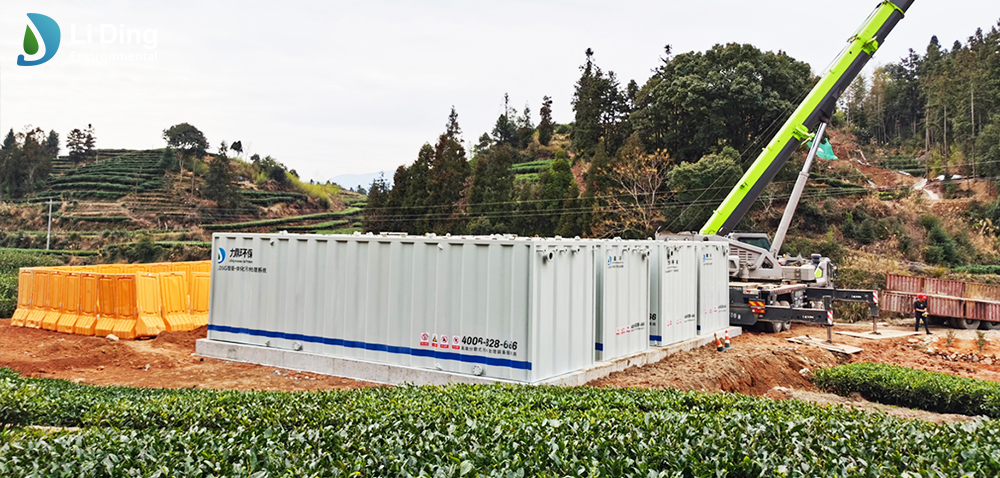

Customizable Above-Ground Industrial Wastewater Treatment Plant
Equipment Features
1.Long service life: The box is made of Q235 carbon steel, spraying corrosion coating, environmental corrosion resistance, life of more than 30 years.
2.High efficiency and energy saving: The core film group is lined with reinforced hollow fiber film, which has strong acid and alkali tolerance, high pollution resistance, good regeneration effect, and the erosion and energy consumption of aeration is more flat than the traditional Plate film energy saving about 40%.
3.Highly integrated: The membrane pool is separated from the aerobic tank, with the function of offline cleaning pool, and the equipment is integrated to save land space.
4.Short construction period: Civil construction only hardening the ground, the construction is simple, the period is short-ened by more than 2/3.
5.Intelligent control: PLC automatic operation, simple operation and maintenance, taking into account the offline, online cleaning control.
6.Safety disinfection: Water using UV disinfection, stronger penetration, can kill 99.9% bacteria, no residual chlorine, no secondary pollution.
7.Flexibility selection: According to different water quality, water quantity requirements, process design, selection is more accurate.
Equipment Parameters
|
Process |
AAO+MBBR |
AAO+MBR |
||||
|
Processing capacity?(m3/d) |
≤30 |
≤50 |
≤100 |
≤100 |
≤200 |
≤300 |
|
Size?(m) |
7.6*2.2*2.5 |
11*2.2*2.5 |
12.4*3*3 |
13*2.2*2.5 |
14*2.5*3 +3*2.5*3 |
14*2.5*3 +9*2.5*3 |
|
Weight?(t) |
8 |
11 |
14 |
10 |
12 |
14 |
|
Installed power?(kW) |
1 |
1.47 |
2.83 |
6.2 |
11.8 |
17.7 |
|
Operating power(Kw*h/m3) |
0.6 |
0.49 |
0.59 |
0.89 |
0.95 |
1.11 |
|
Effluent quality |
COD≤100,BOD5≤20,SS≤20,NH3-N≤8,TP≤1 |
|||||
|
Solar?energy?/ wind energy |
Optional |
|||||
Note: The above data is for reference only. The parameters and selection are subject to mutual confirmation and can be combined for use. Other non-standard tonnage can be customized.
Application Scenarios

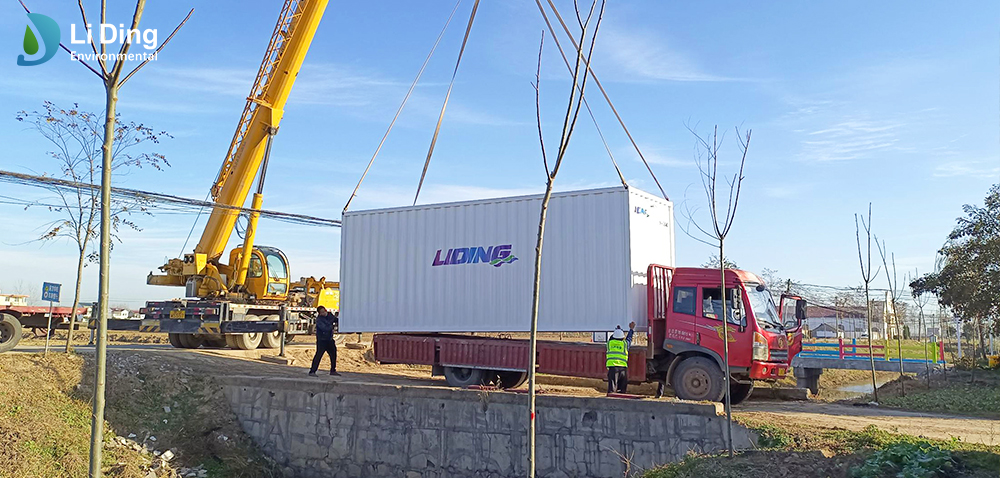

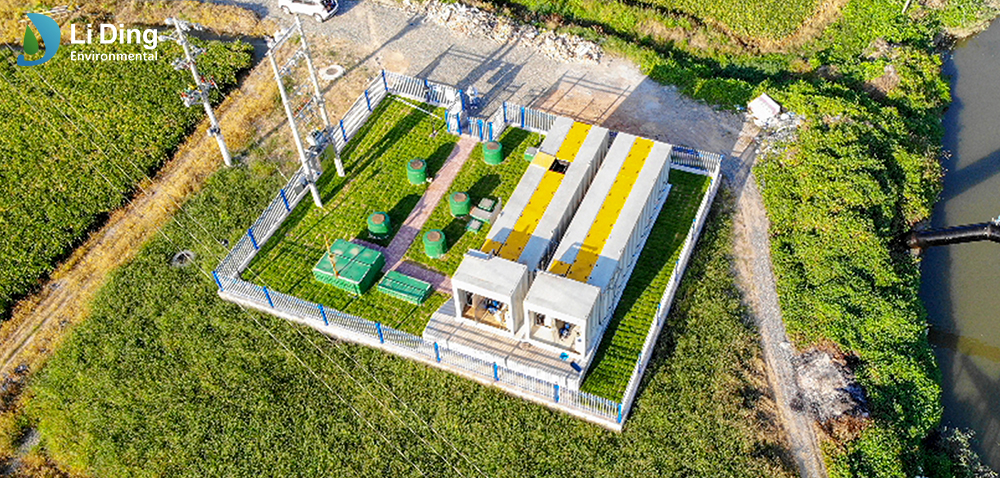

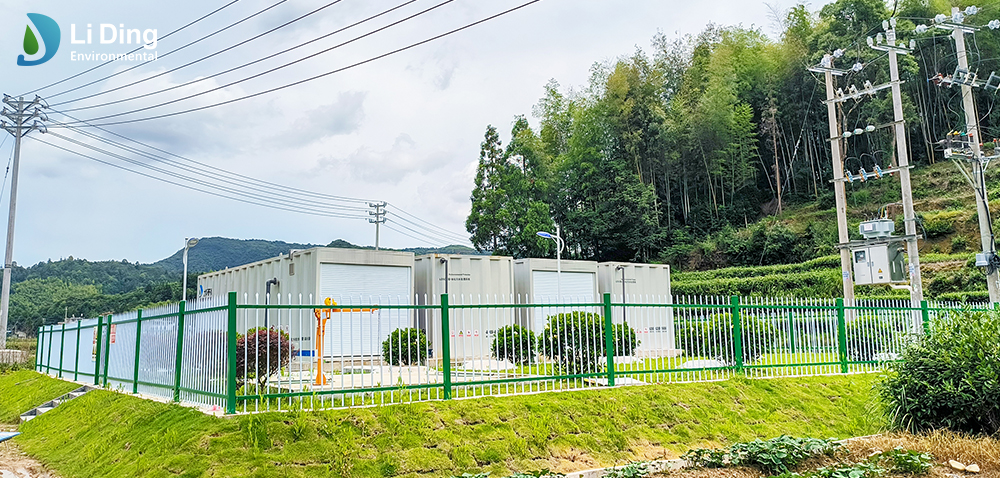

Rural sewage treatment projects, small town sewage treatment plants, urban and river sewage treatment, medical wastewater, hotels, service areas, resorts and other sewage treatment projects.
